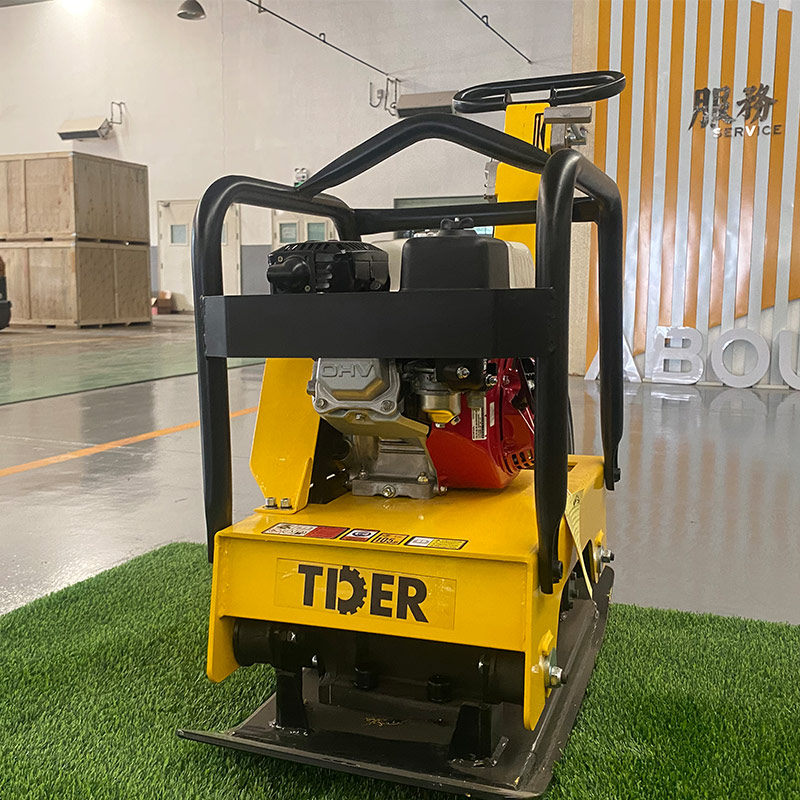

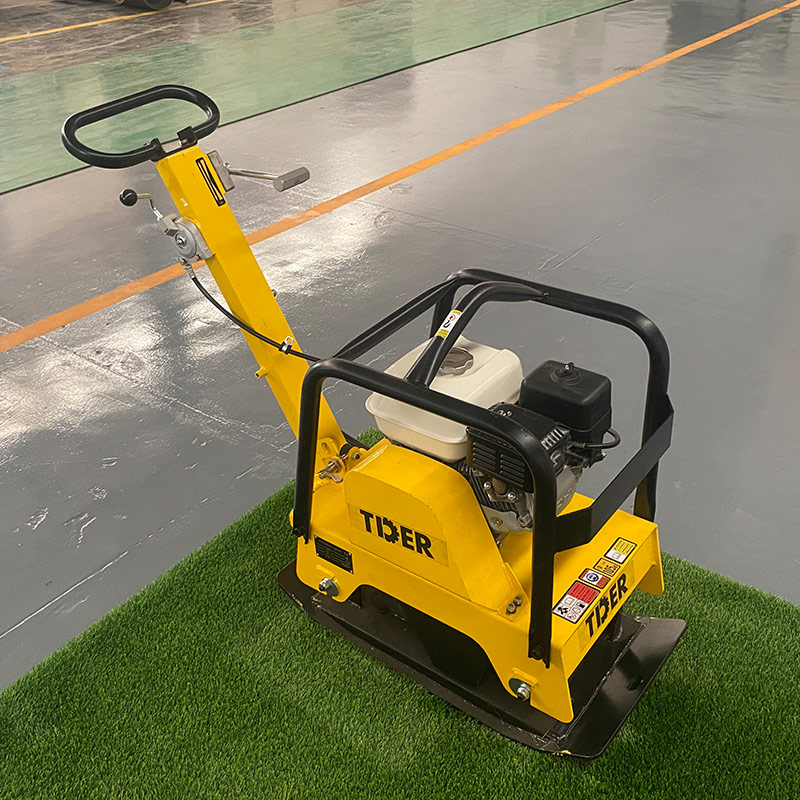

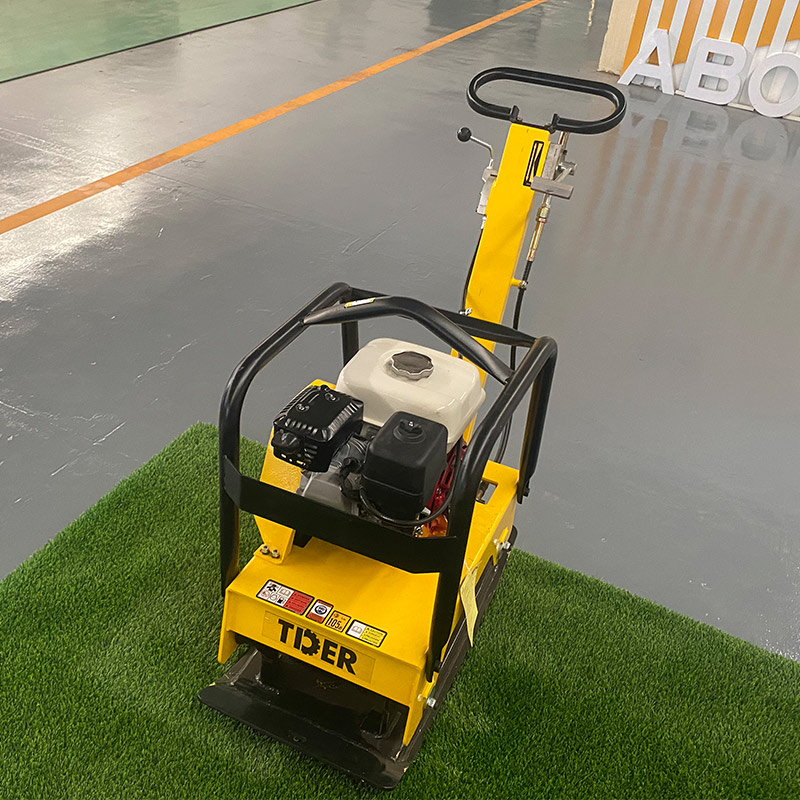

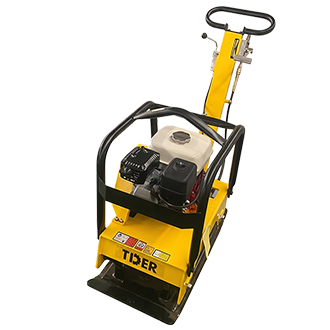

Name: 160 kg Vibratory Plate Compactor With Optimized Base Plate
Availability: InStock

Функции

Protective Frame Helps Reduce Repair Costs

The robust protective frame shields the engine and water tank from accidental impacts and damage during daily operation. By protecting these key components, the TRP160 helps reduce the risk of costly repairs and supports more reliable machine availability on the jobsite.

Rounded Base Plate Edges For A Smoother Asphalt Finish

The optimized base plate features rounded edges that help minimize material buildup when the machine is turned. This allows the TRP160 to move more smoothly across asphalt and helps produce a cleaner, more uniform surface finish.

Heavy-Duty Base Plate Built For Long Service Life

The base plate is manufactured from highly durable materials to withstand repeated compaction work. Its robust construction provides strong wear resistance and helps maintain reliable performance over a long working life.

High Travel Speed For Greater Working Efficiency

The TRP160 combines its 160 kg operating weight with a fast travel speed to improve productivity during compaction work. Faster movement between working areas helps operators complete larger sections more efficiently while reducing unnecessary repositioning time.

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

Engine Brand	—	HONDA
Engine Model	—	GX270
Engine Type	—	Single-Cylinder, Air-Cooled, Four-Stroke
Number of Cylinders	—	1
Engine Power	hp	9
Operating Weight	kg	160
Excitation Frequency	Hz	67
Exciting Force	kN	30.5
Compaction Depth	cm	50
Travel Speed	m/min	27
Working Efficiency	m³/h	500
Plate Size	cm	73 × 37
Working Dimensions	cm	125 × 37 × 93

*ПРИМЕЧАНИЕ: Технические характеристики и конфигурации могут быть изменены в связи с постоянным обновлением и усовершенствованием продукции без предварительного уведомления. Вся информация приведена только для ознакомления, некоторые функции являются дополнительными. Для подтверждения, пожалуйста, свяжитесь с нашей международной командой продаж. Окончательные технические характеристики и конфигурации будут определены в официальном договоре, подписанном обеими сторонами.

Витрина продукции

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Часто задаваемые вопросы

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
