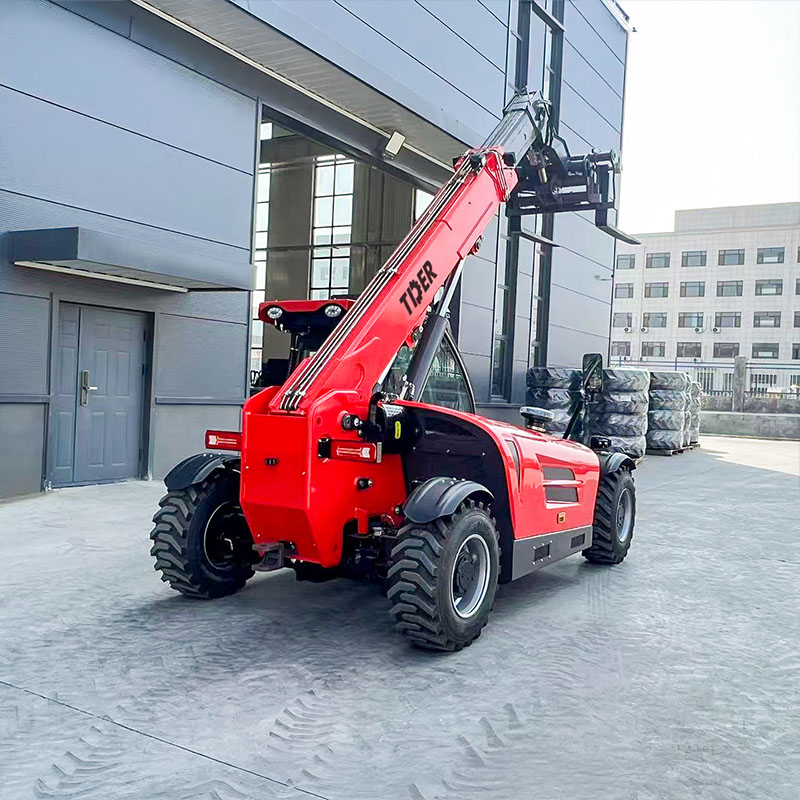

Name: 2.5 Ton Telehandler for All-Terrain Material Handling
Availability: InStock

Функции
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Витрина продукции
Часто задаваемые вопросы
Сопутствующие товары

Функции

Stable Machine Layout for Smoother Driving

The advanced H-type remote drive unit creates a compact drivetrain arrangement with a lower center of gravity and a well-balanced component layout. This helps improve machine stability and contributes to smoother driving and handling during daily operations.

Three Steering Modes for Easier Positioning

Front-wheel steering, four-wheel steering and crab steering give operators greater control over how the machine approaches a working area. Four-wheel steering helps when maneuvering in confined spaces, while crab steering makes lateral positioning easier alongside buildings, walls and loading points.

Precise Hydraulic Pilot Control for Better Load Handling

Hydraulic pilot controls provide responsive control of the working equipment, helping operators make smoother and more precise lifting, lowering and positioning movements. This is particularly useful when handling loads at different heights and working distances.

Automatic Fork Leveling for More Accurate Load Placement

Automatic fork leveling helps keep the forks properly aligned during boom movement, reducing the need for repeated manual adjustment. This makes pallet handling and load placement more efficient and easier to control.

High-Strength BS700 Steel for Structural Protection

BS700 special steel is used in key structural components to provide a strong foundation for repeated lifting and telescopic operations. The material selection supports structural strength while maintaining a practical balance between machine durability and working performance.

Confident Performance Across Diverse Working Conditions

Four-wheel drive, 12-16.5 tires and three steering modes provide useful traction and maneuverability as ground conditions change. These features give the FT25 the practical characteristics of an all-terrain telescopic handler, while its attachment versatility also makes it suitable as an agricultural loader for handling feed, hay, pallets and other farm materials, as well as for construction, mining, ports and municipal applications.

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

Lifting Performance	Maximum Lift Capacity	kg	2500
	Lift Capacity at Full Height	kg	2000
	Lift Capacity at Full Reach	kg	800
	Maximum Lift Height	mm	5900
	Bucket Breakout Force	N	4205
	Reach at Maximum Lift Height	mm	450
	Maximum Forward Reach	mm	3300
Dimensions & Weight	Operating Weight	kg	5500
	Overall Height	mm	2000
	Overall Width (Over Tire)	mm	2000
	Overall Length to Front Carriage	mm	3900
	Ground Clearance	mm	380
	Outside Turning Radius (Over Tire)	mm	3310
	Front Track	mm	1480
	Wheelbase	mm	2300
Cab	Cab Interior Width	mm	800
Tires	Tire Size	—	12-16.5, Pneumatic
Engine	Engine Brand / Model	—	YUNNEI / YN27GBZ
	Rated Power	kW	58
	Optional Engine	—	EURO 5: CHANGCHAI, 55 kW
	Optional Engine	—	EPA 4 / EURO 5: KOHLER KDI2504TCR, 55 kW
	Optional Engine	—	EPA 4: CUMMINS QSF2.8, 55 kW
Fork	Fork Length	mm	1220
Hydraulic System	Hydraulic Oil Tank Capacity	L	115
Fuel System	Fuel Tank Capacity	L	63
Transmission	Transmission Type	—	Hydraulic Torque Converter
Steering	Steering Type	—	Front-Wheel Steering / Four-Wheel Steering / Crab Steering
Drive System	Drive Type	—	4-Wheel Drive

*ПРИМЕЧАНИЕ: Технические характеристики и конфигурации могут быть изменены в связи с постоянным обновлением и усовершенствованием продукции без предварительного уведомления. Вся информация приведена только для ознакомления, некоторые функции являются дополнительными. Для подтверждения, пожалуйста, свяжитесь с нашей международной командой продаж. Окончательные технические характеристики и конфигурации будут определены в официальном договоре, подписанном обеими сторонами.

Витрина продукции

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Часто задаваемые вопросы

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.

ГОРЯЧИЕ ТЕГИ :

2.5 Ton Telehandler for All-Terrain Material Handling

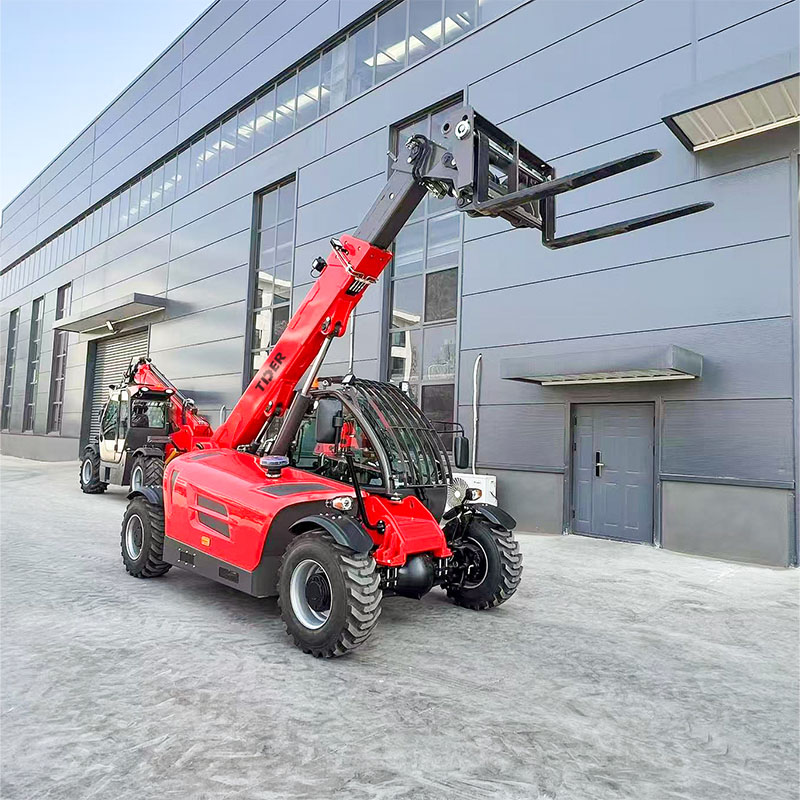

Agricultural Loader

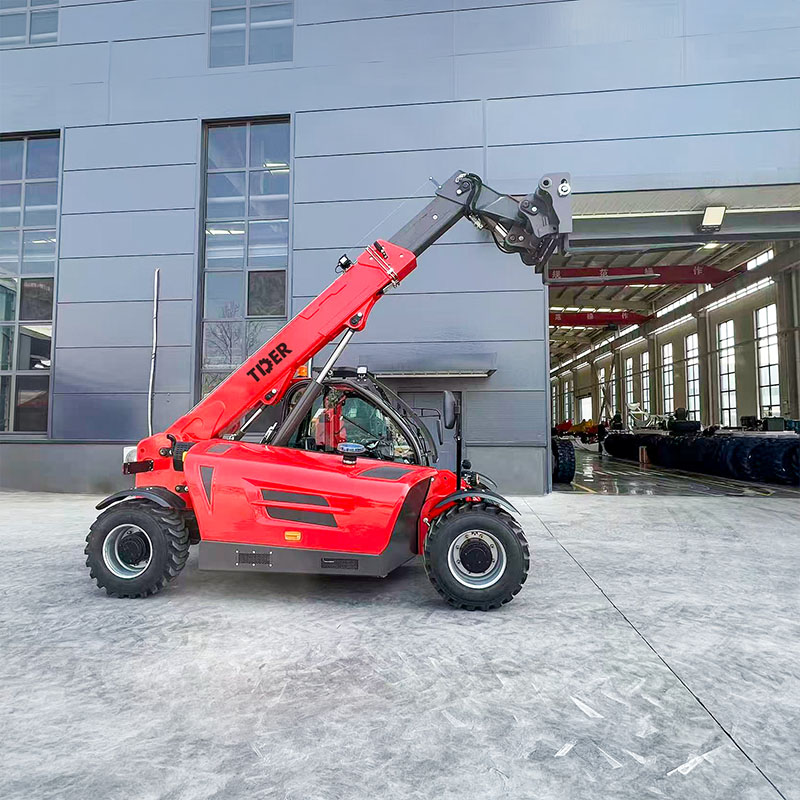

All-Terrain Telescopic Handler
