Name: 100HP Farm Tractor for Sale
Availability: InStock

Функции
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Витрина продукции
Часто задаваемые вопросы
Сопутствующие товары

Функции

Reliable Powertrain Built for Long-Term Performance

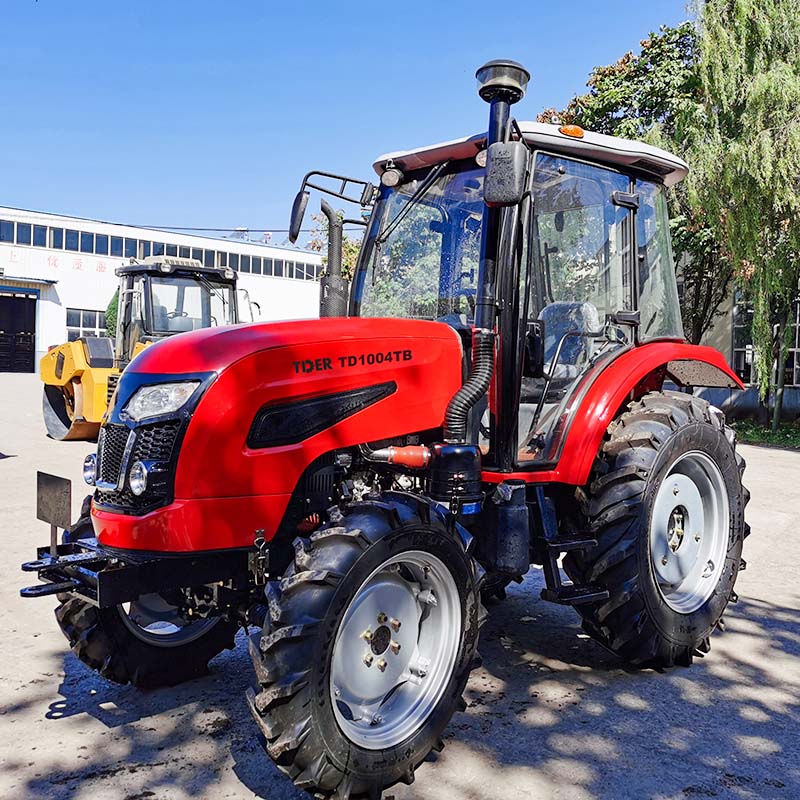

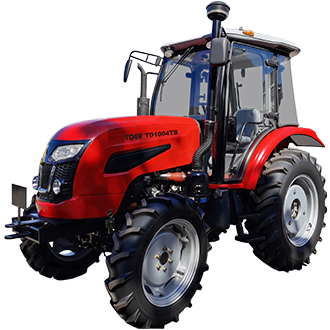

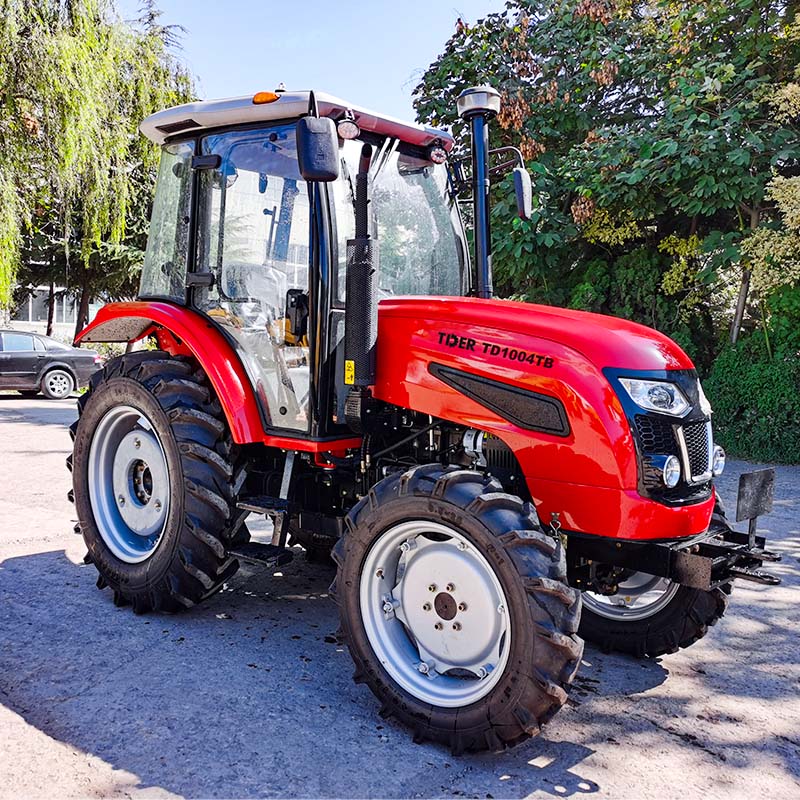

Powered by a 100HP Quanchai diesel engine, the TD1004TB delivers strong and consistent power for demanding agricultural applications. The imported high-strength powder metallurgy clutch disc provides excellent wear resistance and reliable power transmission, ensuring smooth operation and extended service life under heavy workloads.

Heavy-Duty Structure for Tough Working Conditions

Designed with a reinforced TB chassis and enlarged gear structure, the TD1004TB offers superior strength and durability in demanding field environments. The strengthened front axle and robust frame design provide excellent stability, helping the tractor maintain reliable performance during intensive operations.

Efficient Hydraulic System with Strong Lifting Capability

The independent hydraulic oil circuit improves system cleanliness and reduces the risk of hydraulic failures, ensuring more stable operation and easier maintenance. Equipped with a vertical dual-cylinder hydraulic lift system, the TD1004TB delivers strong lifting force and better adaptability for different implements and soil conditions.

Extended Operation Capability

The enlarged fuel tank capacity reduces refueling frequency and supports longer working hours, making the TD1004TB ideal for continuous field operations where productivity and uptime are critical.

Operator-Focused Comfort & Control

The flat-floor operator platform provides a spacious and comfortable working area, while the ergonomic shuttle-style gear control layout improves ease of operation. The hydraulic steering system delivers light and precise handling, reducing operator fatigue during long working days. An optional cab is available to provide enhanced comfort and protection in different working environments.

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

Drive Type	—	4WD
Overall Dimensions – Length	mm	4080
Overall Dimensions – Width	mm	1750
Overall Dimensions – Height	mm	2650
Wheelbase	mm	2010
Front Wheel Tread	mm	1285
Rear Wheel Tread	mm	1340
Minimum Turning Radius – One-Side Braking	m	4.2 ± 0.3
Minimum Turning Radius – Without Braking	m	4.9 ± 0.3
Minimum Service Weight	kg	3030
Transmission	—	12F + 12R
Travel Speed – Forward	km/h	0.44–33.34
Travel Speed – Reverse	km/h	0.59–10.31
Steering System	—	Fully Hydraulic, Front-Wheel Steering
Engine Model	—	4C6-10035
Rated Power	kW	73.5
Rated Speed	rpm	2400
Front Tire Size	—	9.5-24
Rear Tire Size	—	14.9-30
Maximum Lifting Force	kN	17.7
Hydraulic Control Modes	—	Height Adjustment, Floating Control
Maximum Traction Force	kN	23.2
PTO Type	—	Rear-Mounted, Semi-Independent
PTO Speed	rpm	760 / 1000
Optional PTO Speed	rpm	540 / 1000; 540 / 760; 760 / 850
PTO Power	kW	62.5
Front Counterweight	kg	270
Rear Counterweight	kg	470

Витрина продукции

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Часто задаваемые вопросы

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
